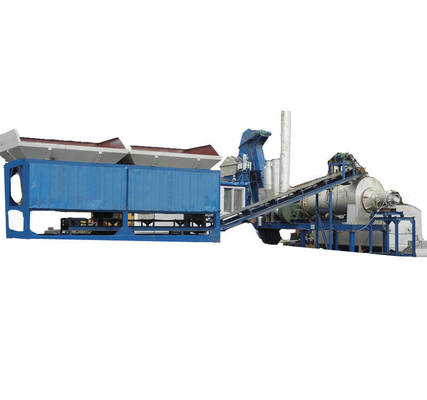

XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity

Büyük resim : XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	XDEM
Sertifika:	CE
Model numarası:	MDHB60

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 takım
Fiyat:	10000-50000
Ambalaj bilgileri:	çıplak paketleme
Teslim süresi:	15 iş günü
Ödeme koşulları:	T/T, L/C
Yetenek temini:	Ayda 100 Set

İletişim

Detaylı ürün tanımı

Vurgulamak:

40TPH Asfalt Karıştırma İstasyonu

10TPH Asfalt Karıştırma İstasyonu

Kazıyıcı Konveyör Asfalt Karıştırma İstasyonu

Product Description:
Mobile asphalt mixing plant can be categorized into two types, one is drum type(MDHB series) and the other is compulsory type (QLB series).

For drum type, we use drying drum to dry aggregates and mix them with bitumen. No ore powder will be used. It is usually used for small and low-level road construction.

For compulsory type, there is mixer to mix all the materials like stones, ore powder and bitumen. All materials will be weighed before being discharged into mixer to ensure the accuracy of the asphalt formula. Usually, it is used for high-standard road construction.

We now have mobile asphalt mixing plant with the capacity from 25tph to 100tph. Welcome to contact us for details and quotations.

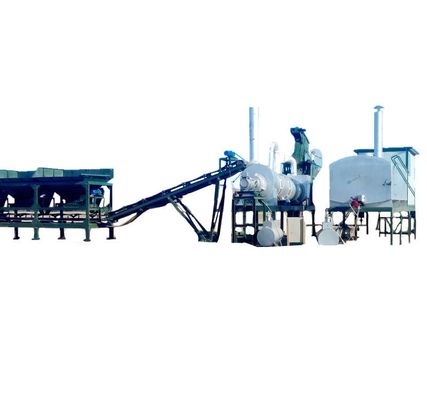

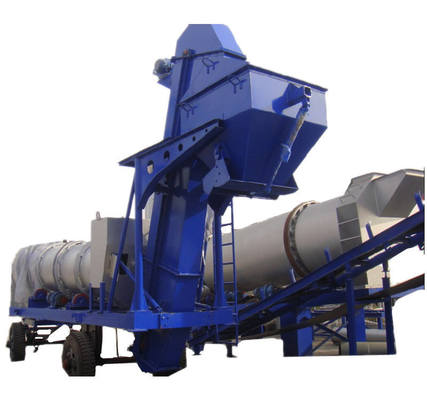

MDHB series of mobile asphalt mixing plant

Features compared with QLB series of mobile asphalt mixing plant:1. Cost saving;
2. Labour saving;
3. It is usually used for low-level road building, like country road.

Model	MDHB20	MDHB40	MDHB60	MDHB80	MDHB100
Production Capacity (T/h)	20	40	60	80	100
Mixing Type	Continuous	Continuous	Continuous	Continuous	Continuous
Dust Remove Effect (mg/Nm3)	≤100	≤100	≤100	≤100	≤100
Fuel Consumption (kg/t) (Oil)	5.5-7	5.5-7	5.5-7	5.5-7	5.5-7
Fuel Consumption (kg/t) (Coal)	10-13	10-13	10-13	10-13	10-13
Aggregate Weighing Accuracy(%)	±1.5	±1.5	±1.5	±1.5	±1.5
Bitumen Weighing Accuracy(%)	±1	±1	±1	±1	±1
Total Power (kw)	50	75	128	165	200

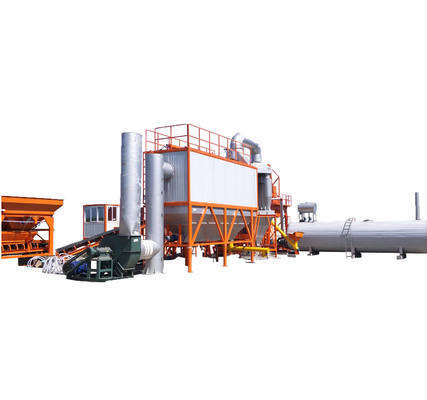

QLB series of mobile asphalt mixing plant

Features compared with QLB series of mobile asphalt mixing plant:

Mixer and ore powder are used so the asphalt quality is better;

Bag house filter is used so the machine is more environment friendly;

It can be used for high-level road building, such as natioal road and expressway.

Model	QLB20	QLB40	QLB60	QLB80	QLB100
Production Capacity (T/h)	20	40	60	80	100
Mixing Type	batch type
Dust Remove Effect (mg/Nm3)	≤50
Fuel Consumption (kg/t) (Oil)	5.5-7	5.5-7	5.5-7	5.5-7	5.5-7
Fuel Consumption (kg/t) (Coal)	10-13	10-13	10-13	10-13	10-13
Aggregate Weighing Accuracy(%)	±1.5	±1.5	±1.5	±1.5	±1.5
Bitumen Weighing Accuracy(%)	±1	±1	±1	±1	±1
Total Power (kw)	50	75	128	165	200

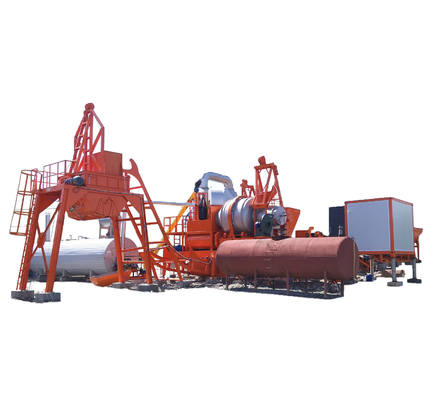

XDEM Movable Asphalt Mixing Station 10TPH 20TPH 40TPH 60TPH Mobile Asphalt Plant Scraper Conveyor High Productivity 2

LB series of compulsory type of asphalt mixing plant has mixer. There are scales for all materials to ensure accuracy of the asphalt formula. Ore powder will be added to the mixture and all materials will be mixed in mixer. Usually, bag house filter is used to protect the environment. It is widely used for high-standard road like expressway, national highway etc.

Currently, we have stationary asphalt mixing plant with the capacity from 40tph to 320tph. Welcome to contact us for details and quotations

Model	LB750	LB1000	LB1200	LB1500	LB2000
Production Capacity (T/h)	60	80	100	120	160
Mixer Capacity (kg)	750	1000	1200	1500	2000
Dust Remove Effect (mg/Nm3)	≤20	≤20	≤20	≤20	≤20
Fuel Consumption (kg/t) (Oil)	5.5-7	5.5-7	5.5-7	5.5-7	5.5-7
Fuel Consumption (kg/t) (Coal)	10	10	10	10	10
Aggregate Weighing Accuracy (%)	±0.5	±0.5	±0.5	±0.5	±0.5
Filler Weighing Accuracy (%)	±0.25	±0.25	±0.25	±0.25	±0.25
Bitumen Weighing Accuracy (%)	±0.25	±0.25	±0.25	±0.25	±0.25

Our Projects:
