XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding
XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

Büyük resim :  XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding

Ürün ayrıntıları:
Menşe yeri: Henan, Çin
Marka adı: XDEM
Sertifika: CE
Model numarası: WL-75X / WL-90X / WL-120X / WL-150X / WL-260P / WL-300P
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 set
Fiyat: US$23800 1Set
Teslim süresi: 30 gün
Ödeme koşulları: T/T, L/C
Yetenek temini: Ayda 100 Set
İletişim
Detaylı ürün tanımı
Anahtar Satış Noktaları: Kesinlik Çekirdek bileşenler: PLC, Motor, Rulman, Şanzıman, Basınçlı kap, Motor, Dişli
Makine Testi Raporu: Tedarik edilen Garanti: 1 yıl
Video Giden Mekan: Tedarik edilen Gerilim: 380V
Nominal Güç: 12.4 Ağırlık (kg): 4200
Boyut (l*w*h): 7500x2900x2100 mm Testere Çapı: 250 -285 mm T2.0
Mil Motor servis: 7.5 kW Mil Hızı: 20-160 rpm
Tek besleme uzunluğu: 10-800 mm İzin verilen beslenme uzunluğu: 2000-6000
Basınç aralığı: 7 MPa

Product Information

XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 0

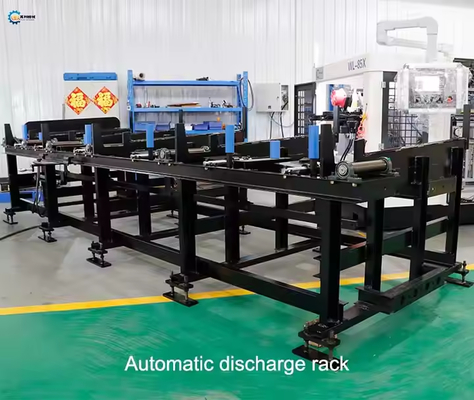

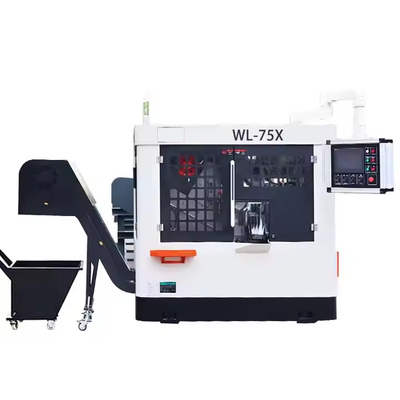

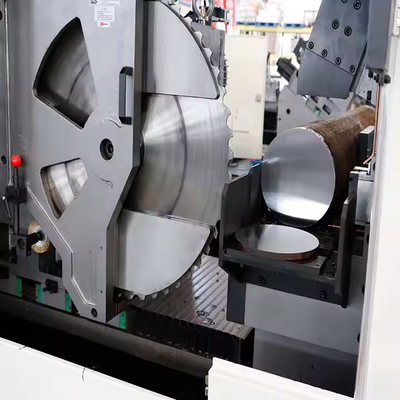

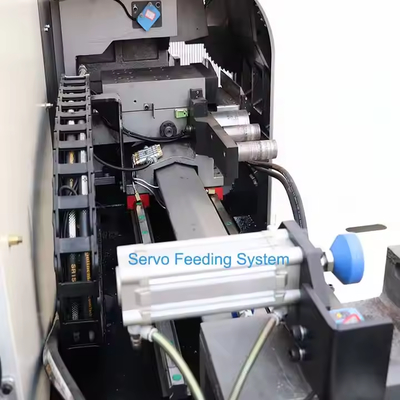

This machine is a fully automatic high speed metal circular saw machine, it specially designed for cutting round solid rods and square solid rods, according to customer’s requirements for high speed cutting and high precision cutting. Fully automatic Precision Circular Saw Machine is built with a PLC-controlled automation system. Made from high-quality raw materials, our machine provides precision and in-depth sawing with its Ceramic saw blades and stainless steel blades, increasing productivity while reducing labor. The Machine consists of a Spindle Box, Mitsubishi Servo Motor, Servo Feeding System, Discharge Device, Hydraulic Clamping, Oil Mist System, Feeding Rack and so on. It can cut all kinds of Metal Materials.

XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 1XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 2XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 3XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 4XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 5XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 6XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 7XDEM WL-75X Computerized High Speed Metal Circular Saw Machine Cnc Round Pipe Cutting Machine with Fully Automatic Feeding 8

Parameters



Machine Model WL-75X WL-90X WL-120X WL-150X WL-260P WL-300P
Sawing Capacity Bar(mm) 12--75 12--90 20--120 40--150 120--260 160--300
Square Materials(mm) 12--45 12--70 20--80 40--105 120--195 160--220
Round Tube(mm) 12--75 12--90 20--120 40--150 120--260 160--300
Square Tube(mm) 12--45 12--70 20--80 40--105 120--195 160--220
Head Spindle Saw Blade Diameter (mm) 250-285 t2.0 315 t2.25 380 t2.6 460 t2.7 840 t4.0 840 t4.0
Spindle Speed(rpm) 20--160 20--150 20--120 20--70 15-40 15-40
Spindle Servo Motor(KW) 7.5 11 11 15 45 45
Feeding Clamps Single Feed Length(mm) 10--800 10--800 10--800 10--800 10--800 10-800(mm)
Hydraulic Device Hydraulic Drive Motor(KW) 2.25(4P) 2.25(4P) 3.75(4P) 3.75(4P) 5.5(4P) 5.5(4P)
Pressure Range (MPa) 7 7 7 7 7 7
Hydraulic Oil Capacity (L) 90 70 110 120 160 170
Size and Weight Weight: Machine and Rack (KG) 4200 4000 6000 6700 12600 13000
Size (mm)

7500X2900

X2100

7500X2900

X2000

7700X3200

X2250

7700X3400

X2250

8300X4150

X2570

9120X4400

X2605
